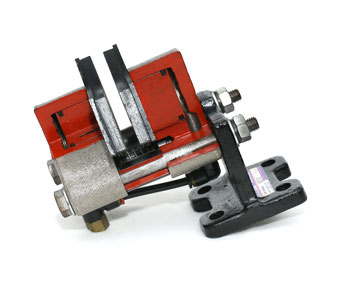

BCF Disc-caliper Brake

Features of the products:
1. The brake is the first choice when there is need for emergency braking and frequent usage; it is characterized by the good heat dissipation effect and stable torque.
2. The torque can be adjusted arbitrarily.
3. It can be used without feeding oil.
4. Easy to install and operate.
5. Applicable to wire extension, conveying machine, fiber machinery, printing machine, various assembly machinery and labor-saving machinery.
6. Installation instruction: refer to the manual for Air Clutch & Brake.

Introduction
Parameter
Application

Download

Structure:

When air is fed to the air chamber, the piston presses the friction plate, which contacts both sides of the disc.

When air is discharged, the brake releases by resetting the spring.

The piston sealing part does not require oil.

Caliper Brake	Dynamic friction（N.m）	Critical dimension（mm)
Model	0.6MPa	B	C	K	M	Disc dia.mm Revolution limit r/min				Weight kg
Model	0.6MPa	Caliper body	Distance of friction plate	Installation hole distance	Block length	disc 250	disc 300	disc 350	disc400	Weight kg
BCF 10	93	108	108	50	75	r4500	r3600	r3000	r2600	3
