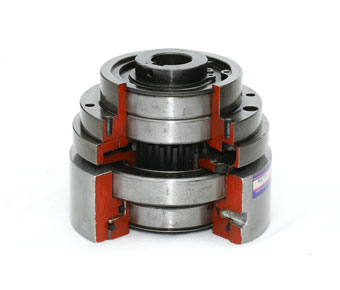

CSPP Single Position Air Clutch

Features of the products:
1. The torque is transmitted by the gear engagement without slippage. The clutch is characterized by the high torque and slippage free.
2. The transmission torque is normally constant.
3. The clutch is characterized by its compact structure and simple assembly.
4. The clutch reacts well and is capable of instant connection or disconnection. No damage incurred due to the gear working fast, thus guarantees a long service life.
5. Comparing with the electromagnetic type, the clutch is powered by air actuation and is capable of connection during high-speed rotation.
6. The clutch can be used in both wet and dry status.
7. The clutch is applicable to printing machinery, packaging machine, calendaring machine, gluing machine, paper processing machine and can forming machine.
8. Installation instruction: refer to the manual for Air Clutch & Brake.

Introduction
Parameter
Application

Download

Structure:

Similar with CTHP, CSPP Single Position Clutch is composed of gear part and ball stopping device. Slippage free and firm connection is guaranteed at designated position.

When the ball enters the configured plural uneven area, it rotates once to connect the gear part at one position.

The clutch is characterized by its superior durability and can be used at high speed condition.

Parameter of CSPP Single Position Air Clutch
Air clutch	Static friction torsion（N.m）	Critical dimension（mm)
Model	0.6MPa	ID A	OD B	Total length C	Revolution limit r/min	Weight kg
CSPP 16	205	20	116	100	1500	3.2
CSPP 25	274	25	128.5	107	1500	4.5
CSPP 38	402	30	135	109	1000	5.4
CSPP 55	550	35	154	118	1000	7.2
CSPP 75	804	40	166.5	120.5	800	9
CSPP 130	1411	50	192	135	700	13.5
CSPP 207	1960	60	211	152.5	700	20.3
CSPP 350	3610	75	235	220	700	31.8
