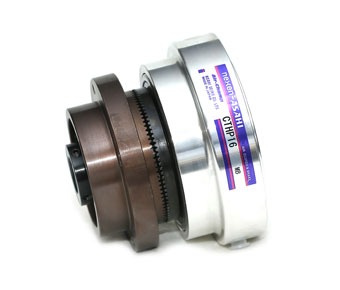

CTHP Gear Clutch

Features of the products:
1. The torque is transmitted by the gear engagement without slippage. The clutch is characterized by the high torque and slippage free.
2. The transmission torque is normally constant.
3. The clutch is characterized by its compact structure and simple assembly.
4. The clutch reacts well and is capable of instant connection or disconnection. No damage incurred due to the gear working fast, thus guarantees a long service life.
5. Comparing with the electromagnetic type, the clutch is powered by air actuation and is capable of connection during high-speed rotation.
6. The clutch can be used in both wet and dry status.

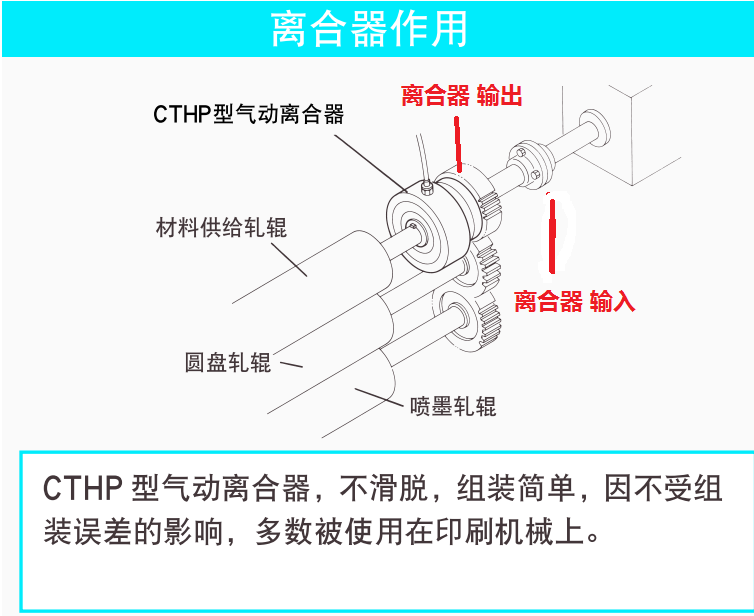

7. The clutch is applicable to printing machinery, packaging machine, calendaring machine, gluing machine, paper processing machine and can forming machine.
8．Installation instruction: refer to the manual for Air Clutch & Brake.

Introduction
Parameter
Application

Download

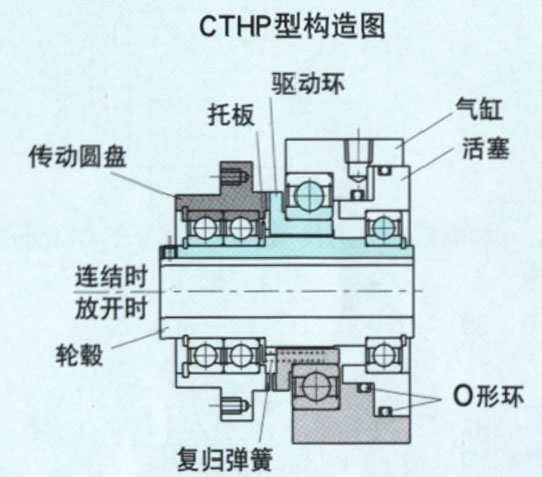

Structure:

CTHP is a gear type clutch, which is engaged by two discs of all-round gears with aid of air pressure; slippage free and firm connection is guaranteed.

Parameter of CTHP Air Clutch
Air clutch	Static friction torsion（N.m）	Critical dimension（mm)
Model	0.6MPa	ID A	OD B	Total length C	Revolution limit r/min	Weight kg
CTHP 2	26	10	64	56	1800	0.6
CTHP 16	205	20	116	98	1500	3.2
CTHP 25	274	25	128.5	105	1500	4.5
CTHP 38	402	30	135	106	1000	5.4
CTHP 55	550	35	154	117	1000	7.2
CTHP 75	804	40	166.5	120	800	8.6
CTHP 130	1411	50	192	136	700	13.5
CTHP 207,X	1960	60	211	154	700	20.3
CTHP 350	3610	75	235	220	700	31.8
