BSM (Micro) Air Brake

Features of the products:
1. The brake is small and light; its torque can be adjusted within a wide range.
2. The brake is trustworthy and safe, no electric spark would appear while usage.
3. The brake is highly durable and can be used in case of severe condition when sliding is continuous, highly frequent, heavily loaded.
4. The brake stops smoothly and easily by adjusting air pressure.
5. The brake is characterized by long service life; the heat release is efficient due to the thick friction plate.
6. Applicable to various kinds of tape manufacturing machine, robot related machinery, gluing machine and sealing machine.
7. Installation instruction: refer to the manual for Air Clutch & Brake.
  • Introduction
  • Parameter
  • Application
Download

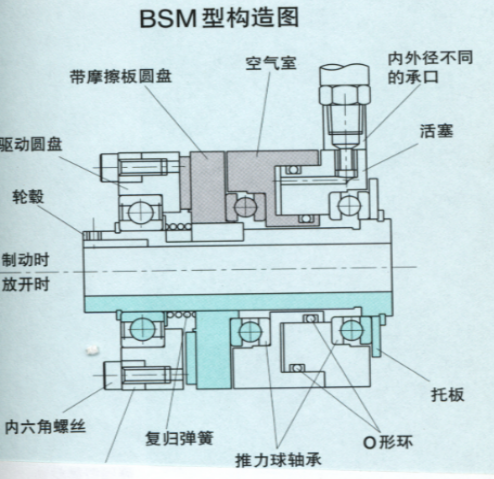

Structure:

BSM brake is actuated by air pressure and is released by resetting the spring.

The disc with friction plate slides in the direction of air calendaring shaft until it contacts with the driving disc

The method to maintain the braking torque is to install and fix the torque bolt pin to the pin groove of the brake adapter.


Air clutch

Static friction torsion(N.m)

Critical dimension(mm)

Model

0.6MPa

ID A

OD B

Total length C

Revolution limit r/min

Weight kg

BSM2

2.2

10

45

64

3600

0.49

BSM7,X

13.7

15

73

85

3600

1.4
