BSB (Std.) Air Brake

Features of the products:
1. The brake stops smoothly; it is simple and smooth.

2. The brake is the first choice when there is need for highly frequent and continuous sliding; the brake can work idling.
3. Wide torque adjustment range. The torque can be adjusted in a wide range as long as the air pressure allows.
4. The friction plate is characterized by its long service life and easy replacement. It can be replaced without affecting the mechanical equipment.
5. Applicable to tire forming machine, NC drilling machine, lumber making machine, various conveyors, game machinery, pulverizing machinery and printing machinery
6. Installation instruction: refer to the manual for Air Clutch & Brake.

Introduction
Parameter
Application

Download

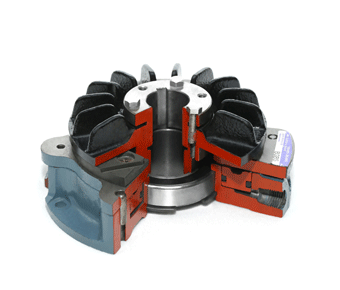

Structure:

BSB brake is mounted on the shaft with tapered shaft sleeve with wedge.

Its friction plate makes a structure that can be replaced without affecting the mechanical equipment.

The heat generated due to friction is dissipated by the cooling fins installed on the disc with hub.

The friction plate has two notches and is in a split type. The friction plate can be replaced after taking out the mounted screw with a screwdriver through the hole of the disc with hub.

Parameter of BSB Brake
Air clutch	Static friction torsion（N.m）	Critical dimension（mm)
Model	0.6MPa	ID A	OD B	Total length C	Revolution limit r/min	Weight kg
BSB 5	53	25	150	68.5	3600	3.5
BSB 10	100	35	182	79.5	2800	6.6
BSB 20	216	50	228	96	2200	12
BSB 40	510	75	302	120	1800	25
BSB 65	636	75	350	134	1600	36
