DME&DMEF (Hermetic) Clutch-brake Unit

Features of the products:
1. The clutch brake unit is hermetic; it can be used in dirty and humid environment. Special types of nickel plated waterproof products are also designed.
2. Connect directly with flanged motor (DME).
3. Its compact structure makes it simple to install.
4. The clutch brake unit reacts well and is wearing resistant, thus guarantees long service life.
5. Friction plate is not made of asbestos and is characterized by its long service life.
6. Applicable to food machinery, can making machinery, stacking machinery, woodworking machine, various conveyors and general industrial machinery.
7. Installation instruction: refer to the manual for Air Clutch & Brake.

Introduction
Parameter
Application

Download

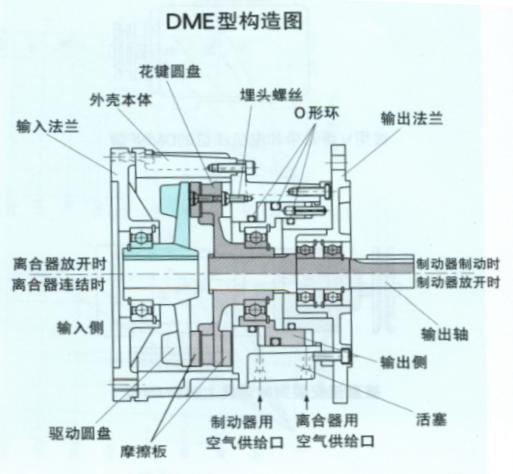

Structure:

1.The clutch brake unit is hermetic. When air is fed from the clutch air supplying hole, spline disc is pressed and friction plate contacts the driving disc.

2.When air is fed from the brake air supplying hole, spline disc slides to the opposition position and contacts friction plate of brake.

3.Clutch and brake do not connect simultaneously and will not affect each other

DME--- it can be directly connected with the standard flanged motor; the output side is the same in size as the flanged motor.

DMEN--- on basis of DME, input shaft, pulley and coupling are installed for inputting.

DMEF--- on basis of DMEN, fixing flat is installed and is fixed by bolts.

Parameter of DME (Hermetic) Clutch-brake Unit

Clutch-brake unit	Statistic friction torsion (N.m) 0.6MPa		ID		OD B	Clutch height C	Revolution limit r/min	Weight kg
Model	Clutch	Brake	A(G7)	AA	OD B	Clutch height C	Revolution limit r/min	Weight kg
DME 2-114	23	25	14 (G7)	14 (J6)	150	161.5	1800	11
DME 3-119	32	32	19 (G7)	19 (J6)	198	210.5	1800	18
DME 3-124	32	32	24 (G7)	24 (J6)	198	220.5	1800	18
DME 8-128	76	84	28 (G7)	28 (K6)	244	273	1800	31
DME 12-138	114	125	38 (F7)	38 (K6)	300	300	1800	31
DME 25-142	240	270	42 (F7)	42 (K6)	300	375	1800	40

Parameter of DMEF (Hermetic) Clutch-brake Unit

Clutch-brake unit	Statistic friction torsion (N.m) 0.6MPa		ID	OD B	Clutch height C	Revolution limit r/min	Weight kg
Model	Clutch	Brake	AA(G7)	OD B	Clutch height C	Revolution limit r/min	Weight kg
DMEN2-114. DMEF2-114	23	25	14	150	211.5	1800	14
DMEN3-119. DMEF3-119	32	32	19	198	280.5	1800	21
DMEN3-124. DMEF3-124	32	32	24	198	302.5	1800	21
DMEN8-128. DMEF8-128	76	84	28	244	375	1800	36
DMEN12-138. DMEF12-138	114	125	38	300	416	1800	36
DMEN25-142. DMEF25-142	240	270	42	300	534	1800	46
