DFE & QFE (HC series) Brake

Features of the products:
1. Thanks to the simple piston and structure of cylinder, centrifugal force does not affect the torque, which does not decrease with the wearing of friction plate. Torque is stable even when the brake works in high speed status.
2. The gasket is in shape of O-ring and is easy and inexpensive to maintain.
3. The brake is disc-structured and will therefore not be affected by centrifugal force during high-speed rotation; its torque is quite stable.
4. The brake is attached with heat releasing plate and is efficient in cooling; the brake is characterized by its stable torque.
5. The sliding area is spline-structured, smooth movement is thus guaranteed; the brake reacts well while connecting and releasing.
6. The friction plate is not made of asbestos and is unit-structured. Efficient air fluidity and effective cooling is thus guaranteed.
7. Low inertia makes the brake most suitable for stopping when rotating at high speed.
8. Application to lumber making machine, remanufacturing machine, rubber molding machine, various punches, cutting machinery, conveying device and forging machinery.
9. Installation instruction: refer to the manual for Air Clutch & Brake.

Introduction
Parameter
Application

Download

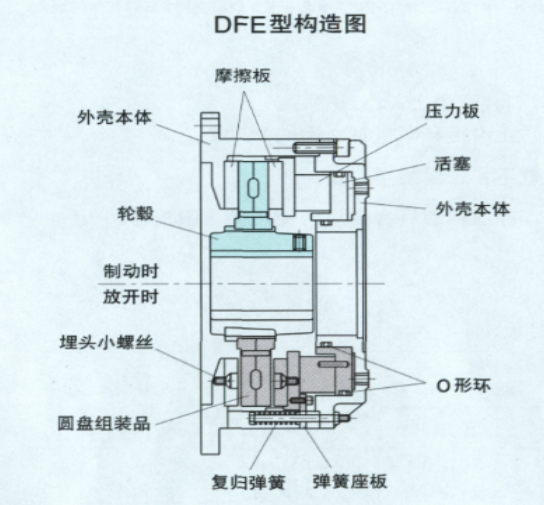

Structural features:

When air is fed to the air chamber, piston is pressed.

Pressure plate is pressed by the piston and moves. Disc then contacts with the friction plate on both sides.

Friction plate, housing body, disc and hub slide smoothly with aid of splines.

When air is discharged, brake releases by resetting the spring.

Parameter of DFE(HC series)
Large Air Clutch	Static friction torsion（N.m）0.6MPa		ID A		OD B	Total length G	Revolution limit r/min	Weight kg
Model	Friction plate S	Friction plate H	Btm.hole（+0.050）	max	OD B	Total length G	Disc side	Weight kg
DFE1150	1480	2160	25.4	60	406	162	2200	65
DFE1650	4350	6350	50.8	100	540	175	1500	114
DFE2200	8050	11750	63.5	150	686	184	1100	199
DFE2500	12600	18250	76.2	150	762	187	1000	246

Parameter of QFE(HC series)Air Brake
Large Air Clutch	Static friction torsion（N.m）0.6MPa		ID A		OD B	Total length G	Revolution limit r/min	Weight kg
Model	Friction plate S	Friction plate H	Btm.hole（+0.050）	max	OD B	Total length G	Disc side	Weight kg
QFE1150	2960	4320	38.1	80	406	233	2200	92
QFE1650	8700	12700	50.8	125	540	246	1500	162
QFE2200	16100	23500	76.2	160	686	266	1100	292
QFE2500	25200	36500	88.9	160	762	266	1000	357
