DFB, QFB (HC series) Spring Brake

1. Brake with aid of spring.
2. Automatic braking happens when power is cut off and in case of low air pressure.
3. The brake is disc-structured and will therefore not be affected by centrifugal force during high-speed rotation; its torque is quite stable.
4. The brake is attached with heat releasing plate and is thus characterized by its superior performance of heat dissipation.
5. Sliding part is spline structured. The brake works smoothly and reacts well.
6. The friction plate is unit structured. Air flow is guaranteed, cooling and heat dissipation is hence effective.
7. Low inertia allows the brake stopping well at high speed.
8. Applicable to conveying machine, lumber making machine, can making machinery, iron making machinery and general industrial machinery.
9. Installation instruction: refer to the manual for Air Clutch & Brake.

Introduction
Parameter
Application

Download

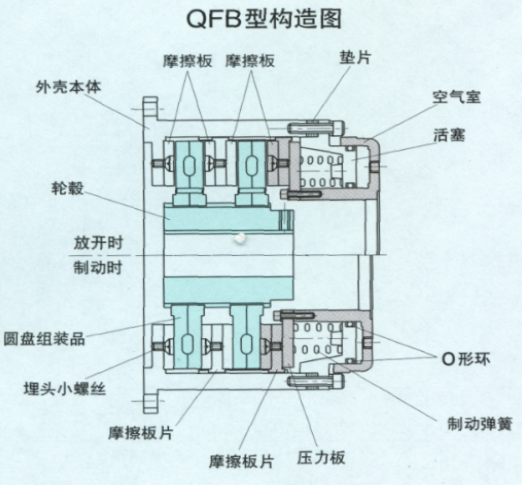

Structure:

DFB and QFB brakes work with aid of spring and release by feeding air inside.

When air is discharged, air chamber, pressure plate and friction plate move due to pressing force of spring; disc then contacts the friction plates on both sides.

Friction plate, disc, housing body and hub slide smoothly with aid of splines.

When air is fed to the air chamber, the brake spring is pressed; friction plate then act in a special condition and brake releases.

Parameter of DFB (HC Series) Spring Brake
Large Air Clutch	Static friction torsion（N.m）0.6MPa		ID A		OD B	Total length G	Revolution limit r/min	Weight kg
Model	Friction plate S	Friction plate H	Btm.hole（+0.050）	max	OD B	Total length G	Disc side	Weight kg
DFB 1150	1030	1470	25.4	60	406	200	2200	73
DFB 1650	3040	4310	50.8	100	540	200	1500	130
DFB 2200	5370	7650	63.5	150	686	222	1100	217
DFB 2500	9200	13100	76.2	150	762	225	1000	274
Parameter of QFB (HC Series) Spring Brake
Large Air Clutch	Static friction torsion（N.m）0.6MPa		ID A		OD B	Total length G	Revolution limit r/min	Weight kg
Model	Friction plate S	Friction plate H	Btm.hole（+0.050）	max	OD B	Total length G	Disc side	Weight kg
QFB 1150	2060	2940	38.1	80	406	271	2200	100
QFB 1650	6080	8620	50.8	125	540	271	1500	178
QFB 2200	10740	15300	76.2	160	686	300	1100	310
QFB 2500	18400	26200	88.9	160	762	302	1000	385
