BTC (Caliper type)

Features of the products:
1. Wide torque control range (maximum 1:640).
2. Free-style design.
3. The brake does not require water cooling; it saves energy and reduces cost.
4. The brake reacts excellently.
5. The friction plates can be replaced in a short time.
6. The simple structure makes it easy to install.
7. Friction plates are made of asbestos; long service life is guaranteed.

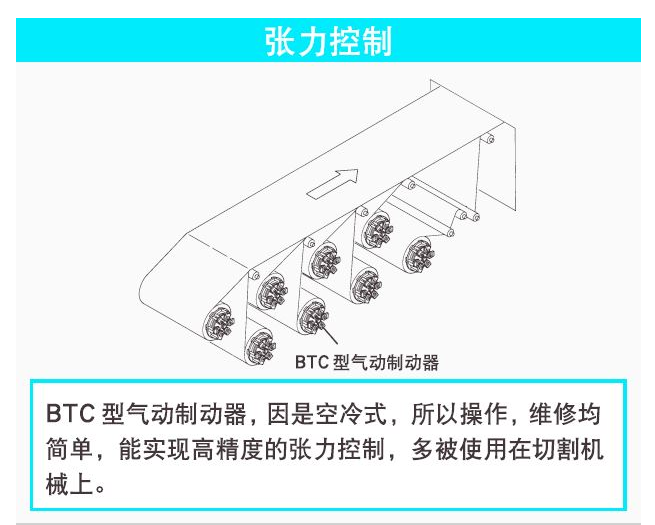

8. Applicable to laminating machine, paper cutting machine, gluing machine, metal processing machine, cutting tool and various printing machines.
9. Installation instruction: refer to the manual for Air Clutch & Brake.

Introduction
Parameter
Application

Download

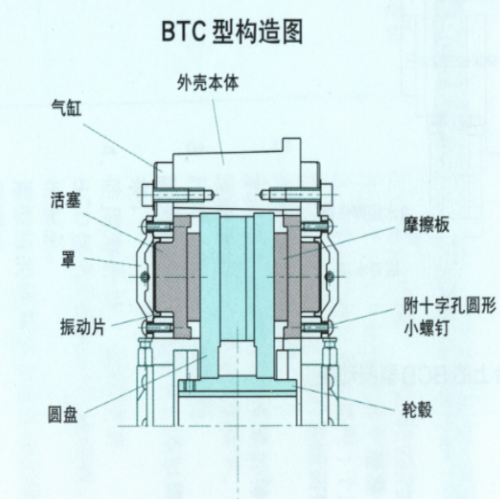

Structure:

When air pressure is applied, vibrating plate pushes the piston to make the friction plate press the disc from both sides.

Vibrating plate of the brake makes it sensitive; the brake reacts well when controlling air pressure changes and torque changes accordingly.

Two discs are applied and are matched to a form a flat rated disc structure; it is characterized by sufficient heat capacity and efficient heat releasing.

Air clutch	Static friction torsion（N.m）	Critical dimension（mm)
Model	0.6MPa	ID A	OD B	Total hight C	Revolution limit r/min	Weight kg
BTC 25,X	212	35	343	144	3000	25
BTC 35,X	492	60	444	144	2200	49
BTC 50,X	1000	100	597	144	1500	77
