BSE Spring Brake

Features of the products:
1. The brake works with aid of spring and releases by feeding air inside.
2. Reverse brake is applicable. Automatic braking happens when power is cut off and in case of low air pressure.
3. The brake is characterized by its superior performance of heat dissipation.
4. The brake is characterized by easy replacement of the friction plate
5. The brake is characterized by simple and sturdy structure.
6. Applicable to lifting device, automatic machine, traveling crane, various conveyors, printing machine and labor-saving machinery.
7. Installation instruction: refer to the manual for Air Clutch & Brake.

Introduction
Parameter
Application

Download

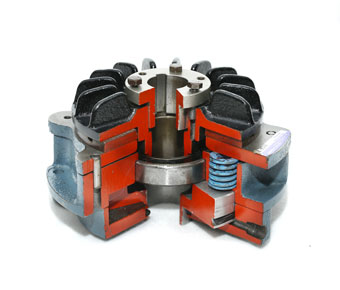

Structure:

BSE brake works with aid of spring and releases by feeding air inside.

When air is supplied from the flow control valve, cylinder moves; screw and piston frame move together to press the brake spring.

The friction plate is separated from the accessory shaft bushing disc to release the brake.

When air is exhausted, the brake spring presses the piston frame, and the friction plate contacts the accessory shaft bushing disc.

Air clutch	Static friction torsion（N.m）	Critical dimension（mm)
Model	0.6MPa	ID A	OD B	Total length C	Revolution limit r/min	Weight kg
BSE7-608	59	25	150	95	3600	5.6
BSE16-608	127	35	182	106.5	2800	8.6
BSE35-608,X	265	50	228	117.5	2200	14.1
BSE60- 608,X	451	75	302	149	1800	30.8
