BCH Caliper-type Brake

Features of the products:
1. The brake does not require water cooling; it reduces cost and performs well in heat releasing.
No water cooling, good heat dissipation and low cost.
2. Wide torque control range, maximum 1:880.
3. The brake and gyrator is characterized by its low inertia and it is light weighted.
4. Replacement of friction plate can be accomplished in seconds. Friction plate is easy to replace. With retaining pin released, it can be replaced without aid of tools.
5. Applicable to newspaper rotary machine, gravure and relief rotary machine, paper cutting machine and printing machine
6. Installation instruction: refer to the manual for Air Clutch & Brake.

Introduction
Parameter
Application

Download

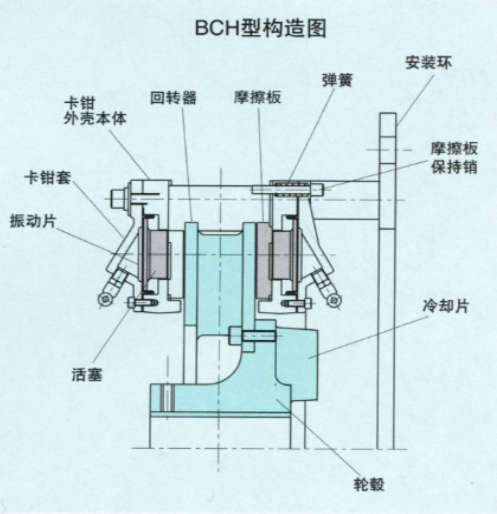

Structure:

1.The caliper with vibrating plate reacts well when the controlled air pressure changes; torque thus changes.

2.Cooling fins on the outer side of hub, rotator and caliper is efficient when releasing heat to the exterior circumstances. Heat will not expand towards shaft, bearing and brake. The brake is characterized by its excellent efficiency and rational design.

3.Cold air continuously enters the brake, gyrator and piping around the caliper can be cooled in time and can be prevented from damaging due to overheat.

4.The friction plate is equipped with retaining pin and can be exchanged with a single handle.

Air clutch	Static friction torsion（N.m）	Critical dimension（mm)
Model	0.6MPa	ID A	OD B	Total hight C	Revolution limit r/min	Weight kg
BCH 25	490	35	406	113	3500	38.3
BCH 30	708	40	452	163	3000	43.3
BCH 35	1099	50	528	214	3000	53.8
BCH 45	1764	75	622	316	2000	79.9
